Description

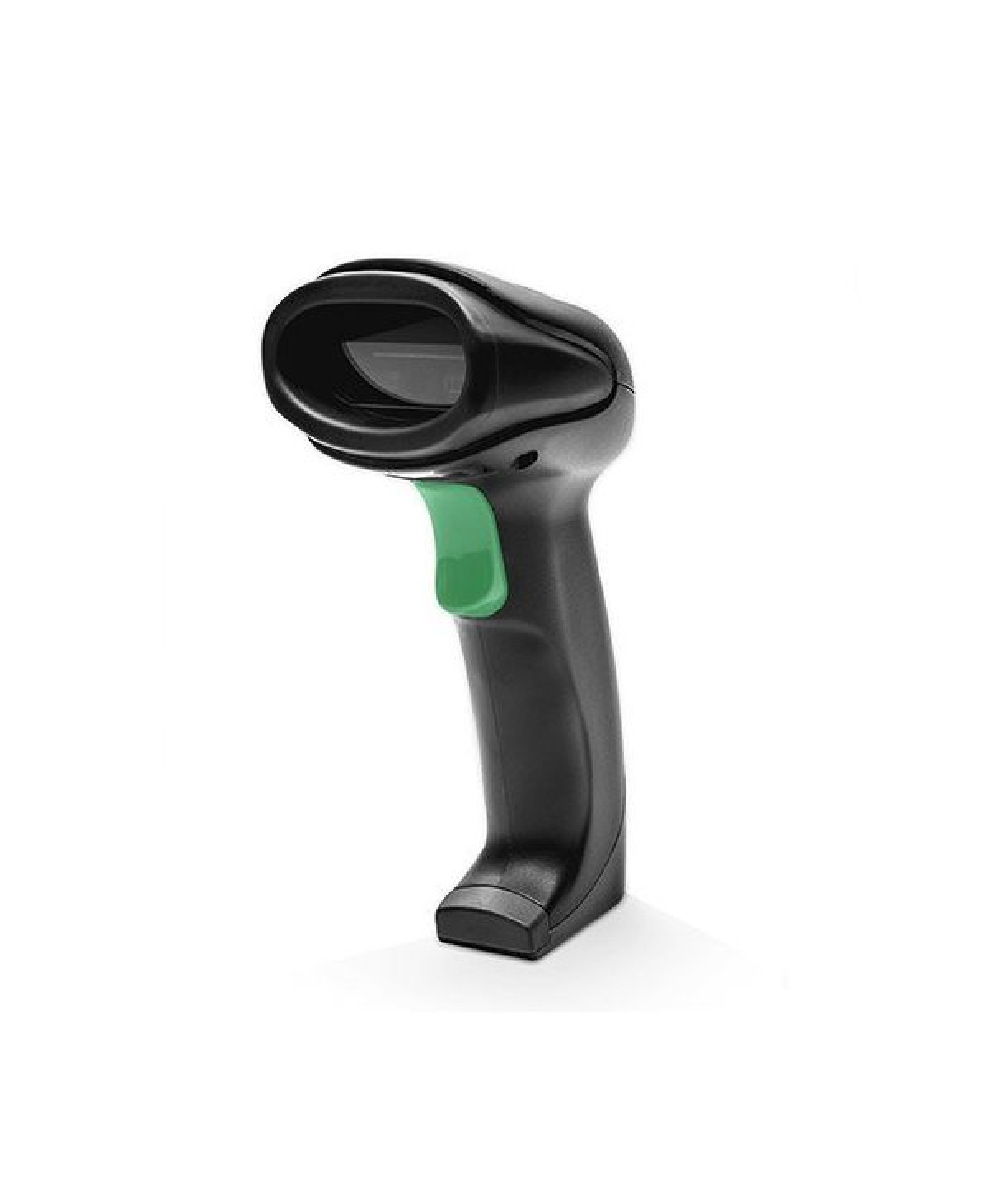

Custom America SCANMATIC 2D Barcode Scanner
Characteristics
- Easy installation thanks to pre-setting
- Great reading performance on labels and in environments with poor light
- IP42 protection
- Optional stand to ease the hands-free reading
- Automatic detection with the “intelligent activation”
2D SM420I
nterfacesUSB/ RS232Supported Barcodes
1D: UPC-A, UPC-E, EAN-8 / JAN-8, EAN-13 / JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25, Matrix 25, Codabar / NW7, Code 93, China Posta, MSI / Plessey, Telepen, GS1 Databar Omni-direzionale, GS1 Databar Limited, GS1 Databar Expended Opzione: Aztec, Micro PDF 417, Micro QR Code, Han Xin Code, GM Code
2D: Data Matrix, PDF 417, QR Code
Option: Aztec, Micro PDF 417, Micro QR Code, Han Xin Code, GM Code
OPTICAL
Optical sensorCMOS sensorLightLED white legResolution3 mil / 0.076mm @ PCS90% Code39
8mil / 0.2mm @ PCS90% QRCode Scan Speed60 fps (at full resolution)SealingIP42 water and dust resistanceIndicator-Print ContrastPCS30% @ 5mil / 0.127mmReading Distance250mm @ 20mil / 0.5mm, PCS90%
OTHER DATA
Power Consumption110 mAPower Supply+5V RS232 – USB +5VOperating Temperature0°C to 50°C (32°F to 122°F)Drop Resistance180 cmMaterialsABS / RubberDimensions73.50 mm (W) x 173 mm (L) x 76.2 mm (H)MTBF50.000 hours
Custom America SCANMATIC 2D Barcode Scanner
