MSI Mag Shield 301 Gaming Case

$16,000

Browse Wishlist
SKU: MAG SHIELD M301 Categories: , Tags: , , , , ,

Description

STORAGE YOU NEED

MSI Mag Shield 301 Gaming Case

Configure your own storage layout and install up to 1x 2.5″ + 1x 3.5″ storages.

1 x 2.5″ + 1 x 3.5″

COMPONENTS CLEARANCE

FAN SUPPORT

RADIATOR SUPPORT

HARDWARE CLEARANCE

The MAG SHIELD M301 one of the micro-atx chassis that supports 250mm GPU and ATX power power supply.

BETTER TOGETHER

The MAG SHIELD M301 Series is built with multiple front I/O connector ports, including a USB 3.2 Gen 1 Type-A.

CONNECTABLE FRONT I/O

  • 1x USB 3.2 Gen 1 Type-A
  • 1x USB 1.0 Type-A
  • 1x Audio-out / Mic-in
  • Reset Button
  • Power Button
  • 1x USB 1.0 Type-A

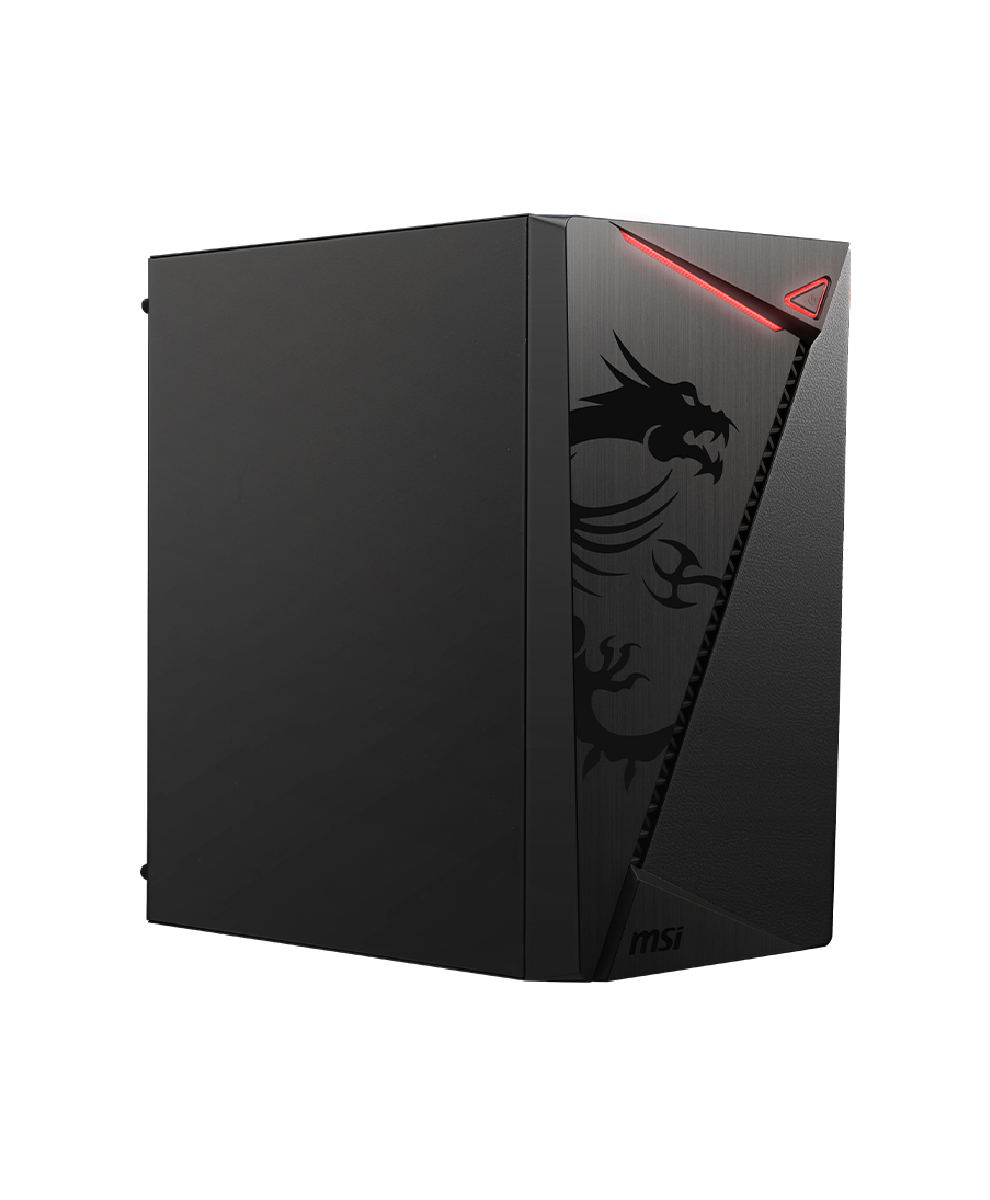

MAG SHIELD M301

Micro-ATX Tower gaming PC case that supports Micro-ATX / Mini ITX.

Support ATX power supply

Storage layout that support up to 1x 2.5″ and 1x 3.5″

  • Product Name MAG SHIELD M301
    Case Form Factor Micro ATX-Tower
    Motherboard Form Factor Support Micro-ATX / Mini-ITX
    I/O Ports
    2x USB 1.0 Type-A
    1x USB 3.2 Gen 1 Type-A
    1x Audio
    1x Mic
    Drive Mount Support 1x 2.5”
    1x 3.5”
    Expansion Slots 4
    Maximum GPU Length 250mm / 9.84 inches
    Maximum CPU Cooler Height 160 mm / 6.3 inches
    Power Supply Support ATX
    Maximum PSU Length 150mm / 5.91 inches

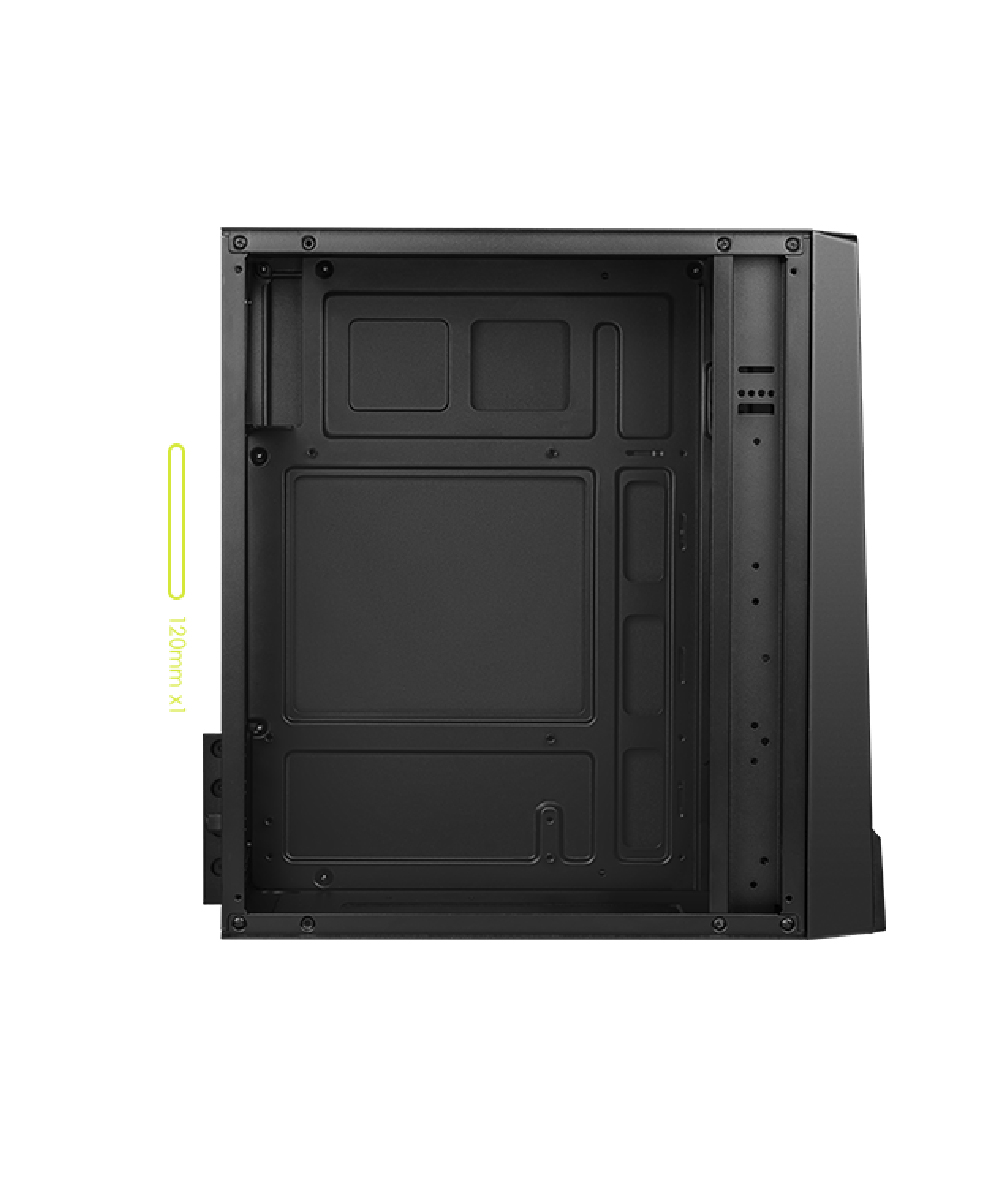

    Fan Size Support Front: 2x 120 mm
    Rear: 1x 120 mm
    Pre-installed Fan Size Rear: 1x 120 mm fan
    Pre-installed Fan Type Rear: 1x Non-LED fan
    Radiator Size Support Rear: 1x 120 mm
    Dimensions (DxWxH) 345 x 206 x 352 mm / 13.58 x 8.11 x
    13.86 inches
    Net Weight 2.28 kg / 5.03 lbs
    Gross Weight 3.12 kg / 6.88 lbs

MSI Mag Shield 301 Gaming Case
